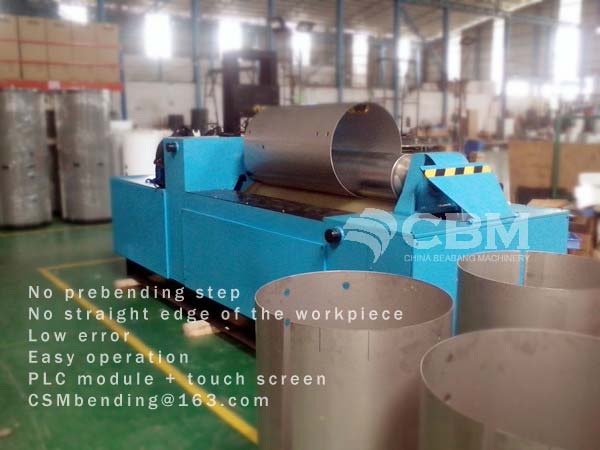

QDW12NC Four-Roll Plate bending Machine


No prebending step
No need to change rolls
PLC module + touch screen


CNC four roll bending machine(cnc sheet metal bending machine) research and development, production and market applications in a leading position.Sheet metal roller bendercan be equipped with automatic lifting frame and automatic outer bracket, which can effectively control the deformation of the workpiece in the process of roll making, auxiliary roll system, reduce labor, and provide product quality and work efficiency.



Technical parameter
1)Specification Name:     QDW12-4×1700 Four-roll Plate Rolling Machine and Production Line
2)Rolled material:   ≥1.8mm≤3mm  Plate stainless steel;
3)Maximum roll width:   1670mm
4)Minimum roll diameter: ¢min215mm;
5)Maximum roll diameter: ¢max600mm;
6)Working form: Normal atmospheric temperature
7)Transmission form: Machine, electricity, gas
8)Control form:     PLC module + touch screen
9)Product Accuracy: The natural state of circular section is smaller than the diameter of the error ±1%mm
10)Production efficiency: About 50 ~ 80 pieces per hour;
11)Installed power: Main motor 3Kw ,Curvature servo motor 0.75Kw×2 set
12)Machine Weight:Total About 5500 Kg, main machine of bending machine is about 4000Kg
13)Outline Size (±100mm):Body(bare machine):Height1430×Length 3300×Witdh 1100;  Feeding Line Parts Bulk Size (Bare size): Length 3000 × Witdh 3000 × 2000 mm
