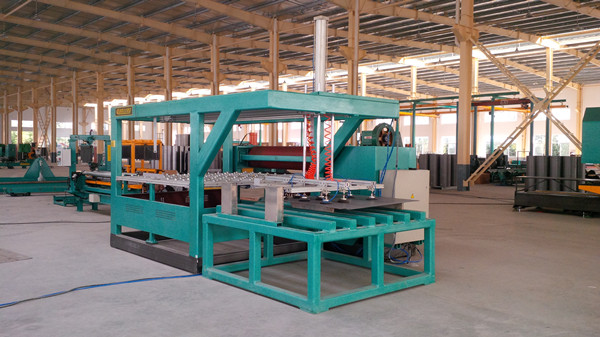

Two roll automatic production line

Summarizes

Automatic hydraulic and bending machine production line is on the two roll bending machine based on the research and development of automatic metal roll round production and processing equipment, the realization of the automatic plate layered, automatic material piling, automatic feeding, automatic feeding, automatic feeding, automatic winding, automatic production material of the whole process.

The high degree of automation, can effectively protect the product quality, increase production efficiency, reduce production costs, reduce labor intensity.It is widely used rapid high-volume manufacturing of thin-walled tubes, car oil drums, ventilation ducts, chimneys, filters, solar water heaters, automobile exhaust pipes, liquid (gas) tank and so on.



Hydraulic automatic two-roll rolling machine production line features:


1. the code sheet feeding platform with automatic devices, the automatic sheet metal sheet, effectively preventing multiple sheets to each other are simultaneously adsorbed reclaimer.

2. Automatic fetching device using SMC and other international brands with buffer large suction vacuum sucker, reasonable structure, low failure rate. The suction cup guide column is provided with a spring cushion, and the air pipe is connected with a metal guiding post, and the structure is stable and is not easy to fall off. Adjustable suction cup bracket according to workpiece rolling length and width adjustment acetabulas, ensure the stable and efficient material. The lifting device is provided with a stable guide rod to ensure the rapid and stable operation of the lifting and walking, and the selection of a high quality and high power cylinder or a servo motor.

3. The automatic feeding platform is installed on the feeding device of the device and the feeding device. The positive system is provided with a plurality of rolling wheels, which is suitable for a plurality of different sheet materials with different plate width. When the feeding device of push plate material, on the device has been in the state, feeding attitude right guarantee sheet.

4. Automatic roller bending machine for my company production of high-tech products won Nantong city scientific progress award. And is a steel roller, roller is a steel roller core outsourcing elastic layer, sheet is arranged on the two roller and adjust the spacing, the contact - pressure -- deformation of rollers, sheet along with the local deformation, driving and rotating sheet metal continuous bending roll forming.

5. an automatic feeding device after completion of rolling the workpiece is automatically pushed out to external platforms.

6. The automatic discharging device is introduced to the external platform automatically after the rolling process is completed.

Customer Case

Sales model	Customers
CLW10-3×2050	GOMONappliances
CLW10-3×500	Kailong High Technology Co., Ltd.,
W10-2.5×650	HubeiJingzhou steel belt factory
W10-3×600	Henan Voight Green purification equipment Co., Ltd.
W10-3.5×400	Ningbo Durrex Pumps Co.,Ltd(DURREX)
W10-3×1000	GSBF Tank Inc.
W10-3.5×1000	Suncupid
W10-3×1200	НAК ЗЕНNТ（Russia）
